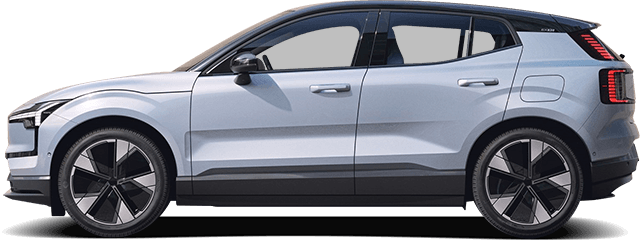

image of Volvo EX30
My Comparison Table:

Volvo EX30 Single Motor Extended Range Tech Specs

from: 2023

other variants:

Compare all variants side by side

Volvo EX30 Single Motor Extended Range - Prices

Price in the United States of America (USD)
Base Price (MSRP) Destination Charge Effective Price
$34,950 $1,295 $36,245

Show prices of all variants

Price in the United Kingdom of Great Britain and Northern Ireland (GBP)
On The Road Price
£39,850

Show prices of all variants

Price in Germany (EUR)
Preis inkl. MwSt.
44.990 €

Show prices of all variants

Battery Capacity Gross/Useable 69​/​64 kWh

Range (WLTP) 480 km 298.3 mi

Minimal Consumption (WLTP) 15.7 kWh/100 km 25.3 kWh/100 mi

Acceleration 0-100 km/h 5.3 s

Acceleration 0-60 mph 5.1 s

Volvo EX30 Single Motor Extended Range - Performance Specs

  • Power: compare 200 kW (268 hp)
  • Torque: compare 343 Nm 253 lb-ft
  • Number of Engines: 1
  • Drive: compare Rear
  • Acceleration 0-60 mph: compare 5.1 s
  • Acceleration 0-100 km/h: compare 5.3 s
  • Acceleration 0-62 mph: 5.3 s
  • Top Speed: compare 180 km/h 112 mph

Volvo EX30 Single Motor Extended Range - Official Range and Energy Consumption (Combined)

  • WLTP Range (TEL*): compare 480 km 298.3 mi
  • WLTP Consumption (TEL*): compare 15.7 kWh/100 km 25.3 kWh/100 mi
  • Petrol/Gasoline equivalent: 1.77 l/100 km 133.4 MPGe

* TEL (Test Energy Low) indicates the lowest values (most economical) with the lightest set of options
TEH (Test Energy High) indicates the highest values (least economical) with the heaviest set of options

Volvo EX30 Single Motor Extended Range - Battery

  • Battery Type: Lithium Nickel Manganese Cobalt (NMC)
  • Battery Capacity Gross: compare 69 kWh
  • Battery Capacity Useable: compare 64 kWh

Volvo EX30 Single Motor Extended Range - Dimensions and Weights

  • Body Type: SUV
  • Length: compare 4233 mm 166.65 in
  • Width: compare 1837 mm 72.32 in
  • Height: compare 1549 mm 60.98 in
  • Wheelbase: 2650 mm 104.33 in
  • Weight: compare 1900 kg 4189 lbs
  • Trunk / Boot Space: compare 318 l 11.2 ft3
  • Trunk / Boot Space Max: 904 l 31.9 ft3
  • Frunk Space: compare7 l 0.2 ft3
  • Max Roof Load: 75 kg 165 lbs
  • Max Trailer Load Braked: 1400 kg 3086 lbs
  • Ground Clearance: compare 177 mm 6.97 in
  • Min Turning Circle (curb-curb): compare 10.6 m 34.8 ft
  • Seats max.: 5

Volvo EX30 Single Motor Extended Range - Charging

  • AC On-Board Charger Standard: 11 kW
  • AC On-Board Charger Optional: 22 kW
  • DC Fast Charging: compare 153 kW
  • DC Charge Port: CCS
  • Charge Port Location: Rear Left

Volvo EX30 Single Motor Extended Range - AC Charging Times (home, work, hotel)

Select State of Charge (SOC):

The maximum on-board charger power of the Volvo EX30 Single Motor Extended Range is 11 kW, optional charger 22 kW.
All figures in the table above are assumed approximate values under optimal conditions.

Volvo EX30 Single Motor Extended Range - DC Fast Charging Times

Select State of Charge (SOC):

The maximum fast charging power of the Volvo EX30 Single Motor Extended Range is 153 kW.
All figures in the table above are assumed approximate values under optimal conditions.

Volvo EX30 Single Motor Extended Range - Others

  • Platform: SEA2
  • Dedicated EV Platform: Yes
  • Drag Coefficient Cd: compare 0.28
