Volvo C40 Recharge FWD (2021-2022) Tech Specs
other variants:
- C40 Recharge AWD (300 kW) (2021-2022)
Battery Capacity Gross/Useable 69/67 kWh
Volvo C40 Recharge FWD - Performance Specs
- Power: compare 170 kW (228 hp)
- Torque: compare 330 Nm 243 lb-ft
- Number of Engines: 1
- Drive: compare Front
- Acceleration 0-60 mph: compare 7.2 s
- Acceleration 0-100 km/h: compare 7.4 s
- Acceleration 0-62 mph: 7.4 s
- Acceleration 0-160 km/h: 20 s
- Acceleration 0-100 mph: compare 20 s
- Top Speed: compare 180 km/h 112 mph
- Quarter Mile (402.3 m): compare 16 s
Volvo C40 Recharge FWD - Official Range and Energy Consumption (Combined)
- WLTP Range (TEL*): compare 434 km 269.7 mi
- WLTP Range (TEH*): 406 km 252.3 mi
- WLTP Consumption (TEL*): compare 18.2 kWh/100 km 29.3 kWh/100 mi
- WLTP Consumption (TEH*): 19.4 kWh/100 km 31.2 kWh/100 mi
- Petrol/Gasoline equivalent: 2.05 l/100 km 115.1 MPGe
* TEL (Test Energy Low) indicates the lowest values (most economical) with the lightest set of options
TEH (Test Energy High) indicates the highest values (least economical) with the heaviest set of options
Volvo C40 Recharge FWD - Battery
Volvo C40 Recharge FWD - Dimensions and Weights
- Body Type: SUV
- Length: compare 4431 mm 174.45 in
- Width: compare 1850 mm 72.83 in
- Height: compare 1582 mm 62.28 in
- Wheelbase: 2702 mm 106.38 in
- Weight: compare 2021 kg 4456 lbs
- Max Payload: 510 kg 1124 lbs
- Trunk / Boot Space: compare 413 l 14.6 ft3
- Trunk / Boot Space Max: 1205 l 42.6 ft3
- Frunk Space: compare31 l 1.1 ft3
- Max Roof Load: 75 kg 165 lbs
- Max Tow Hitch Load: 100 kg 220 lbs
- Max Trailer Load Braked: 1800 kg 3968 lbs
- Max Trailer Load Unbraked: 750 kg 1653 lbs
- Ground Clearance: compare 176 mm 6.93 in
- Min Turning Circle (curb-curb): compare 11.4 m 37.4 ft
- Tire Standard: 235/50 R19
- Rear Tire Standard: 255/45 R19
- Seats max.: 5
Volvo C40 Recharge FWD - Charging
- AC On-Board Charger Standard: 11 kW
- DC Fast Charging: compare 155 kW
- DC Charge Port: CCS
- Charge Port Location: Rear Left
Volvo C40 Recharge FWD - AC Charging Times (home, work, hotel)
Select State of Charge (SOC):
The maximum on-board charger power of the Volvo C40 Recharge FWD is 11 kW.
All figures in the table above are assumed approximate values under optimal conditions.
Volvo C40 Recharge FWD - DC Fast Charging Times
Select State of Charge (SOC):
The maximum fast charging power of the Volvo C40 Recharge FWD is 155 kW.
All figures in the table above are assumed approximate values under optimal conditions.
Volvo C40 Recharge FWD - Others
- Platform: CMA
- Dedicated EV Platform: No
- Drag Coefficient Cd: compare 0.329

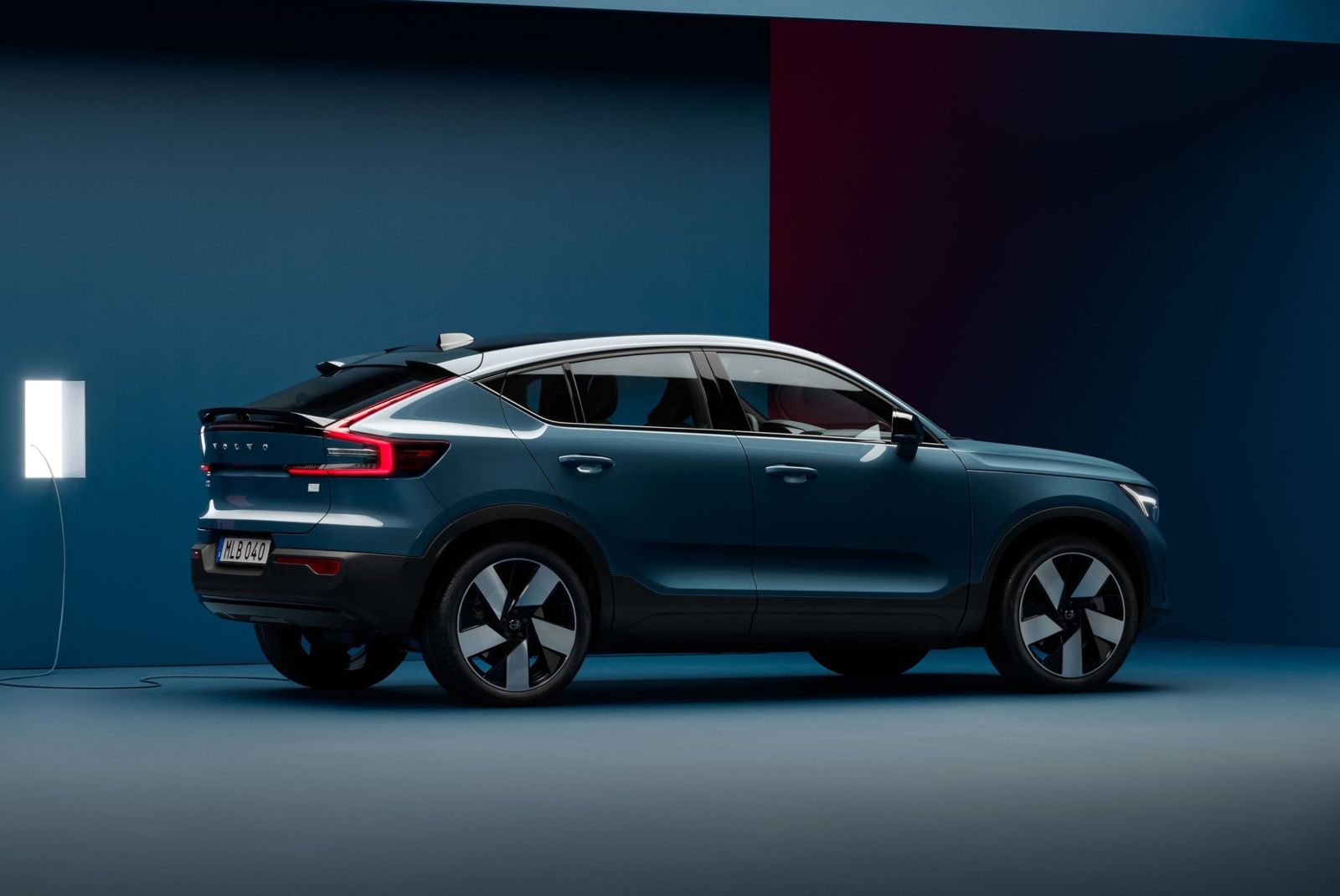

Volvo C40 Recharge - Interior And Exterior Photos
Volvo C40 Recharge - Safety - Crash Tests
-
Euro NCAP see results 5 stars
-
IIHS see results TOP SAFETY PICK+
This is an IIHS crash test of a Volvo XC40 Recharge on the same platform (CMA).
Compare the parameters of all the Volvo C40 Recharge variants
- Battery type
- Battery - gross
- Battery - usable
- AC charge power
- DC charge power
- Charge port location
- Max range WLTP
- Consumption WLTP
- Acceleration 0-100 km/h
- Acceleration 0-60 mph
- Quarter mile
- Top speed
- Power
- Torque
- Length
- Width
- Height
- Wheelbase
- Weight
- Trunk / Boot Space
- Frunk Space
- Turning circle
- Driven axles
- Platform
- Drag coefficient Cd
- Ground clearance
- Max Towing Capacity
