Tesla Model 3 RWD (2017-2023) Tech Specs
other variants:
- Model 3 Long Range RWD (239 kW) (2023-2023)
- Model 3 Long Range Panasonic battery (324 kW) (2017-2023)
- Model 3 Long Range LG battery (324 kW) (2017-2023)
- Model 3 Performance (375 kW) (2018-2023)
Battery Capacity Gross/Useable 60/57.5 kWh
This model was previously known as the Standard Range Plus.
Tesla Model 3 RWD - Performance Specs
- Power: compare 239 kW (320 hp)
- Torque: compare 420 Nm 310 lb-ft
- Number of Engines: 1
- Drive: compare Rear
- Acceleration 0-60 mph: compare 5.8 s
- Acceleration 0-100 km/h: compare 6.1 s
- Acceleration 0-62 mph: 6.1 s
- Acceleration 0-200 km/h: compare 18 s
- Top Speed: compare 225 km/h 140 mph
- Quarter Mile (402.3 m): compare 15.9 s
Tesla Model 3 RWD - Official Range and Energy Consumption (Combined)
- WLTP Range (TEL*): compare 510 km 316.9 mi
- WLTP Range (TEH*): 491 km 305.1 mi
- WLTP Consumption (TEL*): compare 11.3 kWh/100 km 18.2 kWh/100 mi
- WLTP Consumption (TEH*): 11.7 kWh/100 km 18.8 kWh/100 mi
- Petrol/Gasoline equivalent: 1.27 l/100 km 185.3 MPGe
* TEL (Test Energy Low) indicates the lowest values (most economical) with the lightest set of options
TEH (Test Energy High) indicates the highest values (least economical) with the heaviest set of options
Tesla Model 3 RWD - Battery
Tesla Model 3 RWD - Dimensions and Weights
- Body Type: Sedan/Limousine
- Length: compare 4694 mm 184.8 in
- Width: compare 1933 mm 76.1 in
- Height: compare 1443 mm 56.81 in
- Wheelbase: 2875 mm 113.19 in
- Weight: compare 1752 kg 3862 lbs
- Trunk / Boot Space: compare 561 l 19.8 ft3
- Frunk Space: compare88 l 3.1 ft3
- Max Roof Load: 68 kg 150 lbs
- Max Tow Hitch Load: 91 kg 201 lbs
- Max Trailer Load Braked: 910 kg 2006 lbs
- Max Trailer Load Unbraked: 750 kg 1653 lbs
- Ground Clearance: compare 140 mm 5.51 in
- Min Turning Circle (curb-curb): compare 11.8 m 38.7 ft
- Tire Standard: 235/45 R18
- Seats max.: 5
Tesla Model 3 RWD - Charging
- AC On-Board Charger Standard: 11 kW
- DC Fast Charging: compare 170 kW
- DC Charge Port: CCS, Tesla NACS
- Charge Port Location: Left Rear
Tesla Model 3 RWD - AC Charging Times (home, work, hotel)
Select State of Charge (SOC):
The maximum on-board charger power of the Tesla Model 3 RWD is 11 kW.
All figures in the table above are assumed approximate values under optimal conditions.
Tesla Model 3 RWD - DC Fast Charging Times
Select State of Charge (SOC):
The maximum fast charging power of the Tesla Model 3 RWD is 170 kW.
All figures in the table above are assumed approximate values under optimal conditions.
Tesla Model 3 RWD - Others
- Platform: Tesla 3,Y
- Dedicated EV Platform: Yes
- Drag Coefficient Cd: compare 0.23

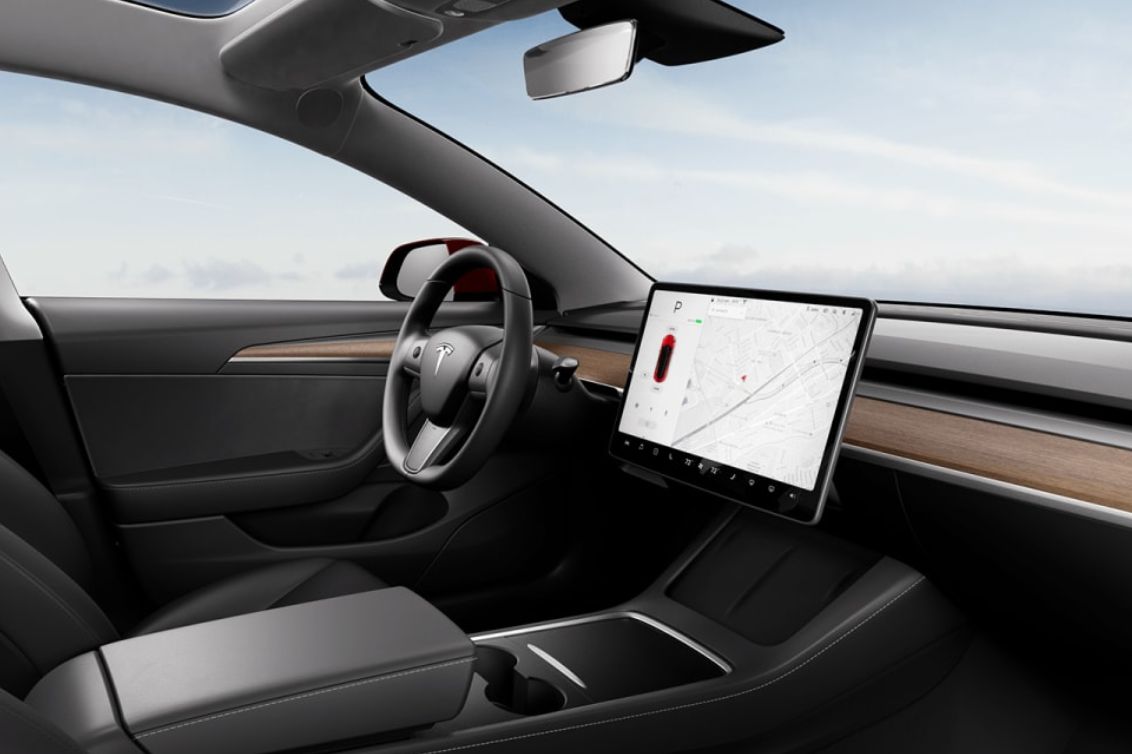

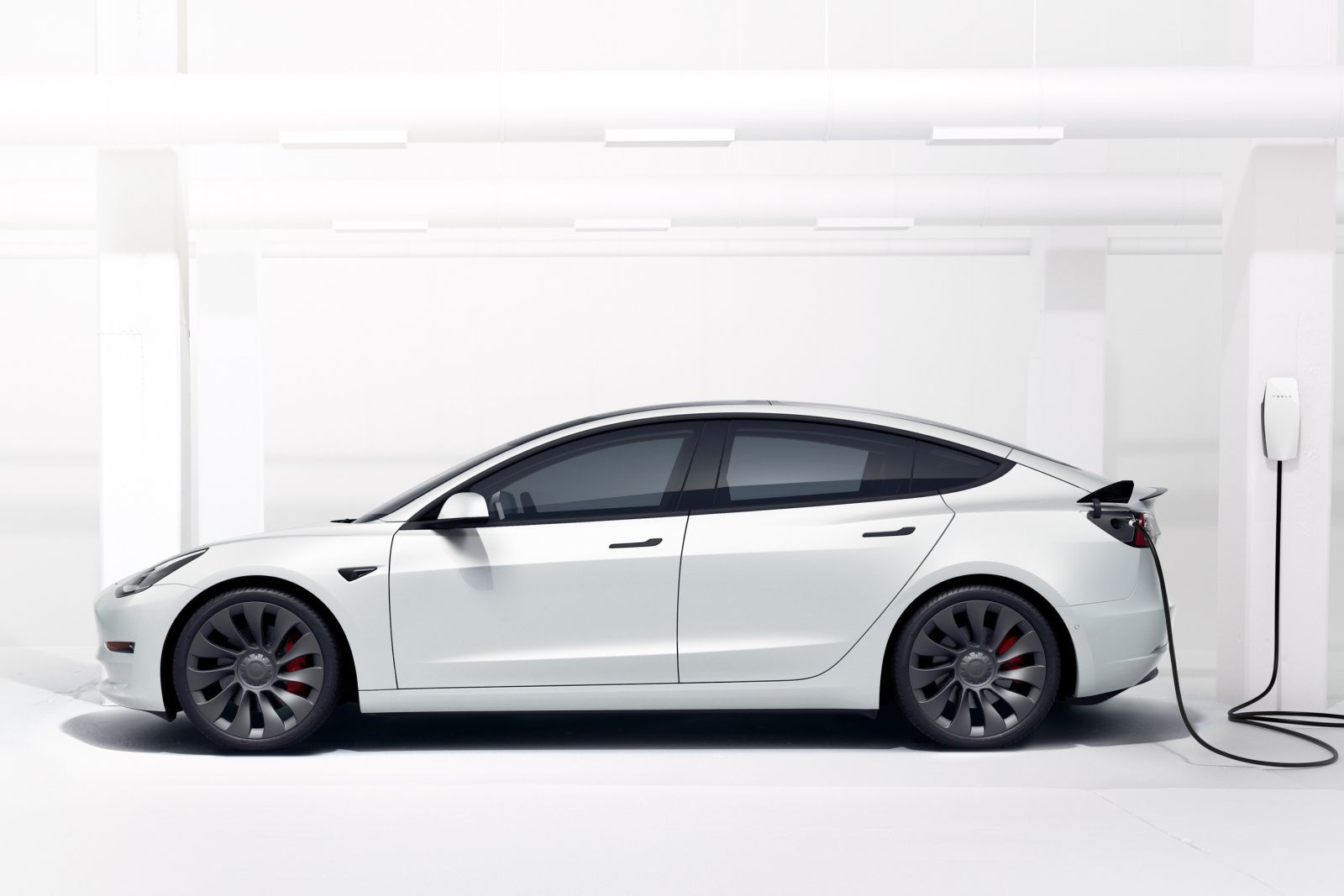

Tesla Model 3 - Interior And Exterior Photos
Tesla Model 3 - Safety - Crash Tests
-
Euro NCAP see results 5 stars
-
NHTSA see results 5 stars
-
IIHS see results TOP SAFETY PICK+
Compare the parameters of all the Tesla Model 3 variants
- Battery type
- Battery - gross
- Battery - usable
- AC charge power
- DC charge power
- Charge port location
- Max range WLTP
- Consumption WLTP
- Acceleration 0-100 km/h
- Acceleration 0-60 mph
- Quarter mile
- Top speed
- Power
- Torque
- Length
- Width
- Height
- Wheelbase
- Weight
- Trunk / Boot Space
- Frunk Space
- Turning circle
- Driven axles
- Platform
- Drag coefficient Cd
- Ground clearance
- Max Towing Capacity
