Home EV Tech Specs BYD Seal U Design

Choose a car

image of BYD Seal U
My Comparison Table:

BYD Seal U Design Tech Specs

from: 2023

other variants:

Compare all variants side by side

Battery Capacity Gross/Useable 90​/​87 kWh

Range (WLTP) 500 km 310.7 mi

Minimal Consumption (WLTP) 20.5 kWh/100 km 33 kWh/100 mi

Acceleration 0-100 km/h 9.6 s

Acceleration 0-60 mph 9.3 s

BYD Blade Battery (LFP)

BYD Seal U Design - Performance Specs

  • Power: compare 160 kW (214 hp)
  • Torque: compare 330 Nm 243 lb-ft
  • Number of Engines: 1
  • Drive: compare Front
  • Acceleration 0-60 mph: compare 9.3 s
  • Acceleration 0-100 km/h: compare 9.6 s
  • Acceleration 0-62 mph: 9.6 s
  • Top Speed: compare 175 km/h 109 mph

BYD Seal U Design - Official Range and Energy Consumption (Combined)

  • WLTP Range (TEL*): compare 500 km 310.7 mi
  • WLTP Consumption (TEL*): compare 20.5 kWh/100 km 33 kWh/100 mi
  • Petrol/Gasoline equivalent: 2.31 l/100 km 102.2 MPGe

* TEL (Test Energy Low) indicates the lowest values (most economical) with the lightest set of options
TEH (Test Energy High) indicates the highest values (least economical) with the heaviest set of options

BYD Seal U Design - Battery

  • Battery Type: Lithium Iron Phosphate (LFP)
  • Battery Capacity Gross: compare 90 kWh
  • Battery Capacity Useable: compare 87 kWh

BYD Seal U Design - Dimensions and Weights

  • Body Type: SUV
  • Length: compare 4785 mm 188.39 in
  • Width: compare 1890 mm 74.41 in
  • Height: compare 1668 mm 65.67 in
  • Wheelbase: 2765 mm 108.86 in
  • Weight: compare 2147 kg 4733 lbs
  • Max Payload: 410 kg 904 lbs

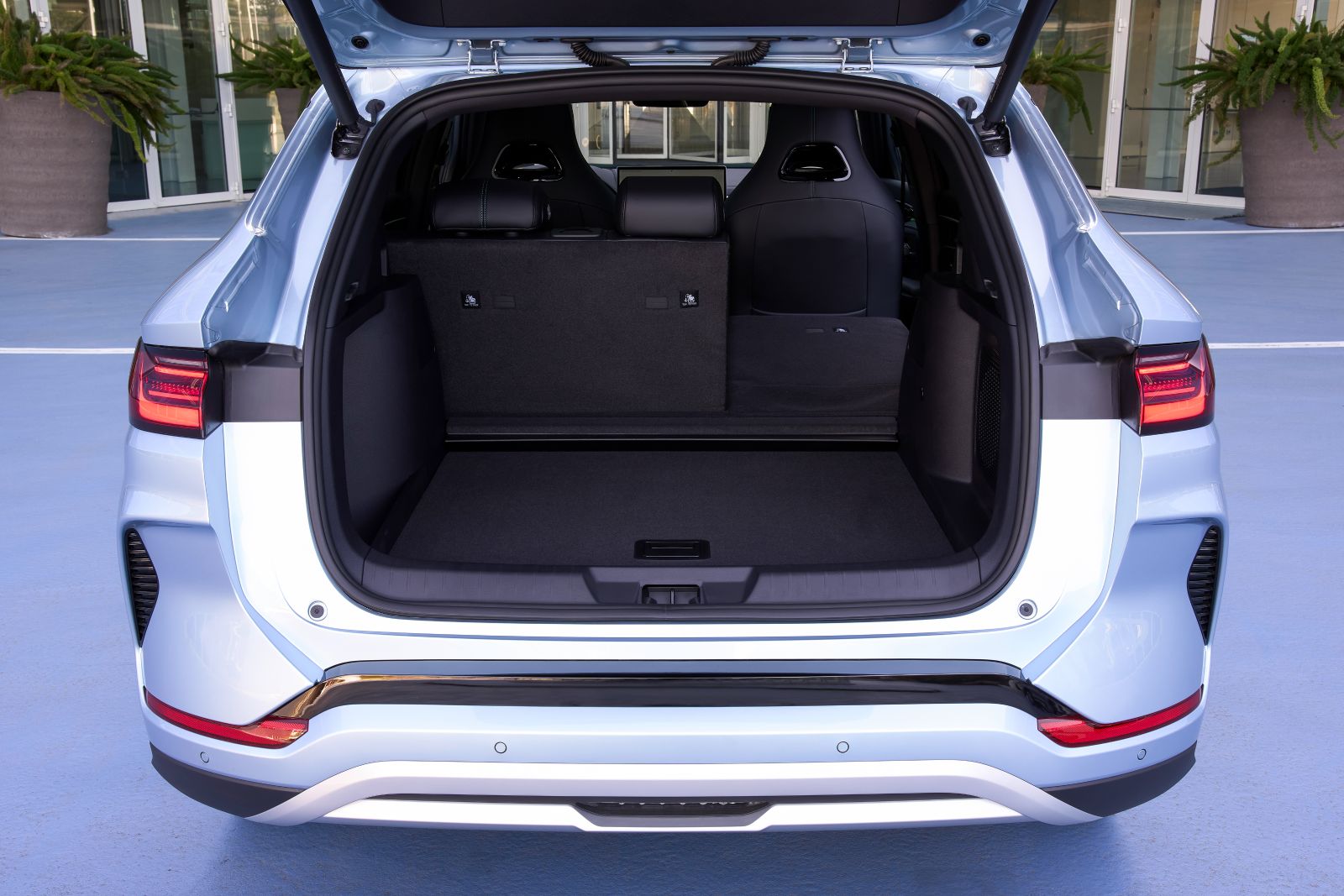

  • Trunk / Boot Space: compare 552 l 19.5 ft3
  • Trunk / Boot Space Max: 1440 l 50.9 ft3
  • Frunk Space: comparedoesn't have a frunk
  • Max Roof Load: 75 kg 165 lbs
  • Max Trailer Load Braked: 1300 kg 2866 lbs
  • Max Trailer Load Unbraked: 750 kg 1653 lbs
  • Min Turning Circle (curb-curb): compare 11 m 36.1 ft
  • Tire Standard: 235/50 R19
  • Seats max.: 5

BYD Seal U Design - Charging

  • AC On-Board Charger Standard: 11 kW
  • DC Fast Charging: compare 140 kW
  • DC Charge Port: CCS

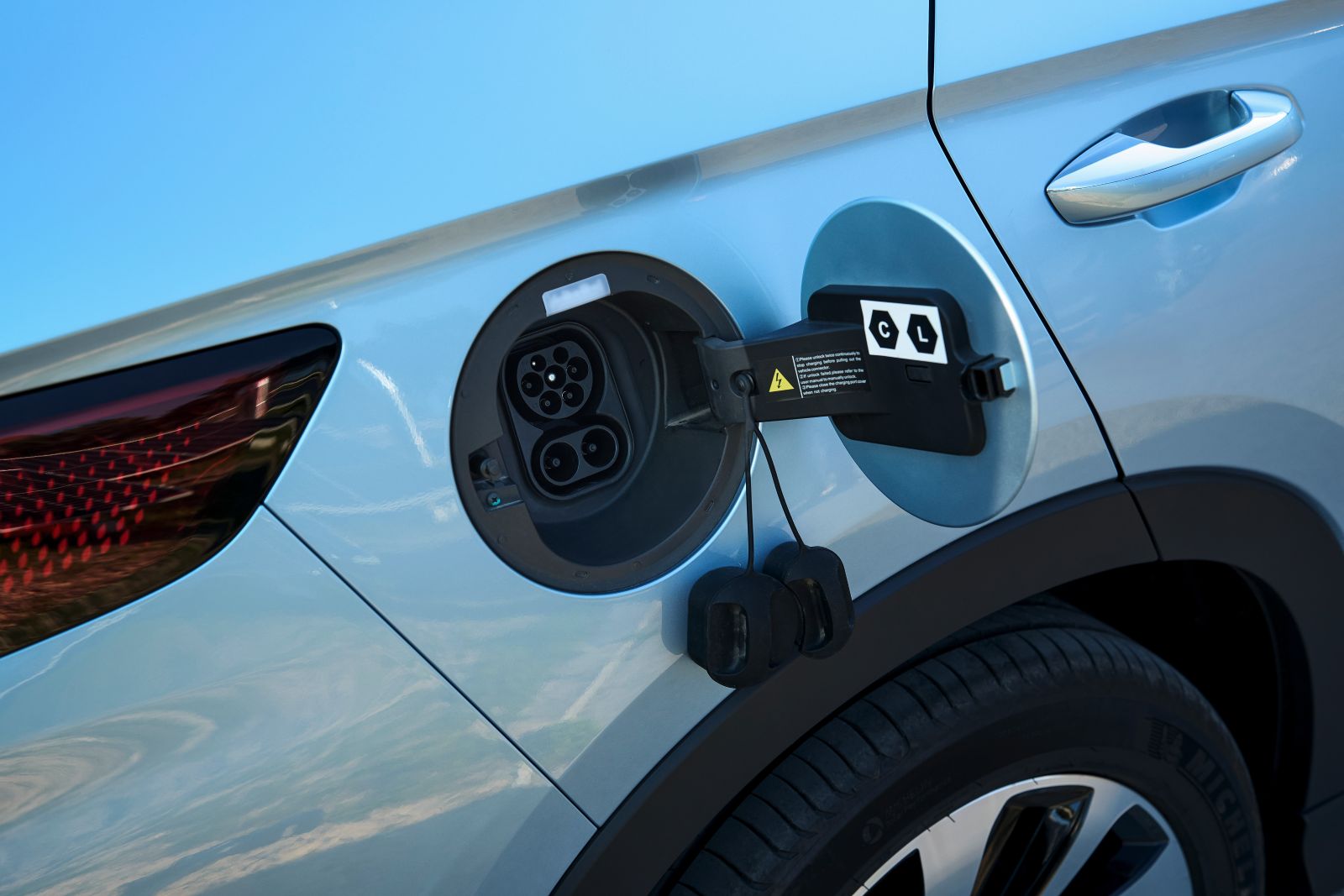

  • Charge Port Location: Rear Right

BYD Seal U Design - AC Charging Times (home, work, hotel)

Select State of Charge (SOC):

The maximum on-board charger power of the BYD Seal U Design is 11 kW.
All figures in the table above are assumed approximate values under optimal conditions.

BYD Seal U Design - DC Fast Charging Times

Select State of Charge (SOC):

The maximum fast charging power of the BYD Seal U Design is 140 kW.
All figures in the table above are assumed approximate values under optimal conditions.

BYD Seal U Design - Others

  • Platform: E-PLATFORM 3.0
  • Dedicated EV Platform: Yes
  • Drag Coefficient Cd: compare 0.32

BYD Seal U - Interior And Exterior Photos

BYD Seal U - Image 1 from the photo gallery BYD Seal U - Image 2 from the photo gallery BYD Seal U - Image 3 from the photo gallery BYD Seal U - Image 4 from the photo gallery BYD Seal U - Image 5 from the photo gallery BYD Seal U - Image 6 from the photo gallery BYD Seal U - Image 7 from the photo gallery BYD Seal U - Image 8 from the photo gallery BYD Seal U - Image 9 from the photo gallery BYD Seal U - interior BYD Seal U - interior BYD Seal U - interior BYD Seal U - interior BYD Seal U - steering wheel BYD Seal U - steering wheel BYD Seal U - steering wheel BYD Seal U - connectors BYD Seal U - interior display BYD Seal U - interior BYD Seal U - interior BYD Seal U - interior front seats BYD Seal U - interior rear seats BYD Seal U - trunk / boot BYD Seal U - interior rear seats BYD Seal U - rear lights BYD Seal U - headlight BYD Seal U - trunk / boot BYD Seal U - trunk / boot BYD Seal U - trunk / boot BYD Seal U - charging port BYD Seal U - charging port

BYD Seal U - Safety - Crash Tests

Compare the parameters of all the BYD Seal U variants

The technical information on this page are used from official data provided by the car companies and figures measured by our editorial staff and/or other independent persons. For further details, please visit the manufacturer's website.
If you think any of the information is wrong, please let us know.
